CNC Marble Pattern Manufacturer  | HZX STONE

Direct China CNC marble pattern factory supplying premium 3D wall panels, floor medallions, and custom carvings.

Volume wholesale pricing, strict QC.

Send Inquiry Now





productcate-510-340


As a leading CNC marble pattern manufacturer and direct supplier, HZX STONE delivers precision-engineered 3D stone wall panels, intricate floor medallions, and architectural stone carvings for large-scale commercial and premium residential projects. Utilizing advanced multi-axis CNC milling machinery alongside deep stone-crafting expertise, our factory processes natural stone with absolute geometric accuracy. We provide global distributors, architects, and real estate developers with reliable wholesale supply capacities, flexible OEM/ODM customization, and stringent quality control standards engineered to meet precise architectural blueprints.






Technical Specifications & Selection Guide

Selecting the right material specifications and understanding machinery capabilities is critical for ensuring structural integrity and visual continuity in commercial stone installations. The table below outlines the core parameters of our factory-produced CNC marble patterns:

Technical Parameter Standard Specification Premium / Heavy-Duty Option Testing Standard / Notes
Available Base Materials

Carrara White, Nero Marquina, Crema Marfil, Custom Quartzite

 Luxury Onyx, Calacatta Gold, Specialized Travertine

100% natural stone selection based on project slip-resistance requirements
Thickness Standard 15mm；18mm；20mm... 30mm；50mm or Honeycomb Backed ±0.5mm strict calibrated thickness tolerance
Processing Accuracy ±0.5mm Up to ±0.2mm Multi-axis CNC routing and diamond-tool calibration
Surface Finish Options Polished, Honed, Sandblasted Acid-washed, Antiqued, Leathered texture Measured via digital glossmeter according to ASTM standards
Minimum Order Quantity 50m2 per specific pattern Negotiable for custom mock-ups Supports volume container mixing for global wholesale distribution

productcate-1024-1024



productcate-1024-1024

Advanced Fabrication & Project-Specific Customization



Our fabrication workshop translates digital CAD and BIM files directly into machine-executable paths. This integrated digital workflow ensures that complex geometric fluid patterns, high-relief geometric tiles, and large-scale continuous vein medallions align perfectly during site installation.

Digital Slate Selection & Matching

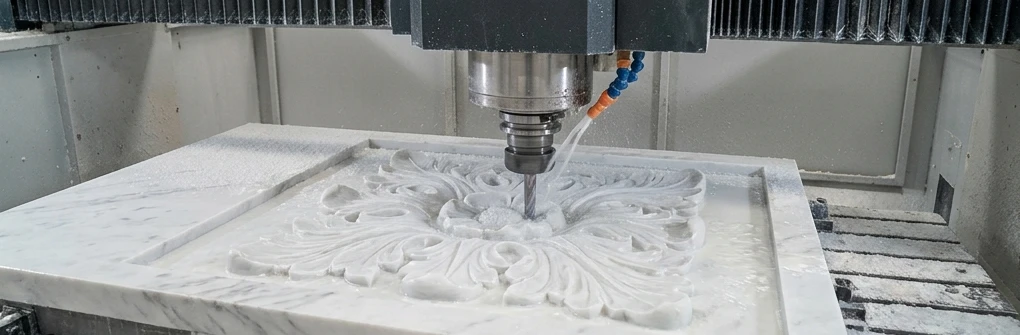

Multi-Axis CNC Milling

Hand-Finished Detailing

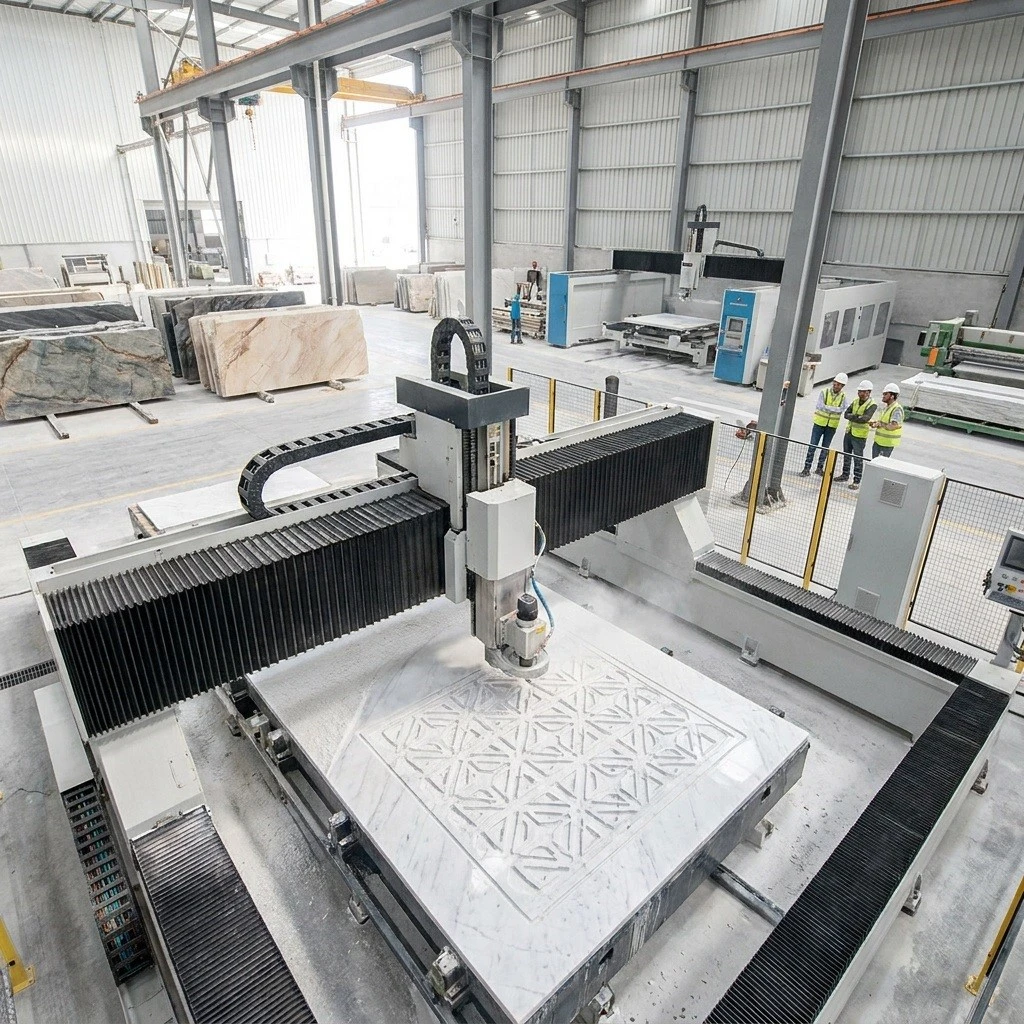

  • Production Capacity: Our facility houses multi-axis CNC machines, bridge cutters, and automatic polishing lines, yielding over 8,000m2 of custom stone patterns monthly.

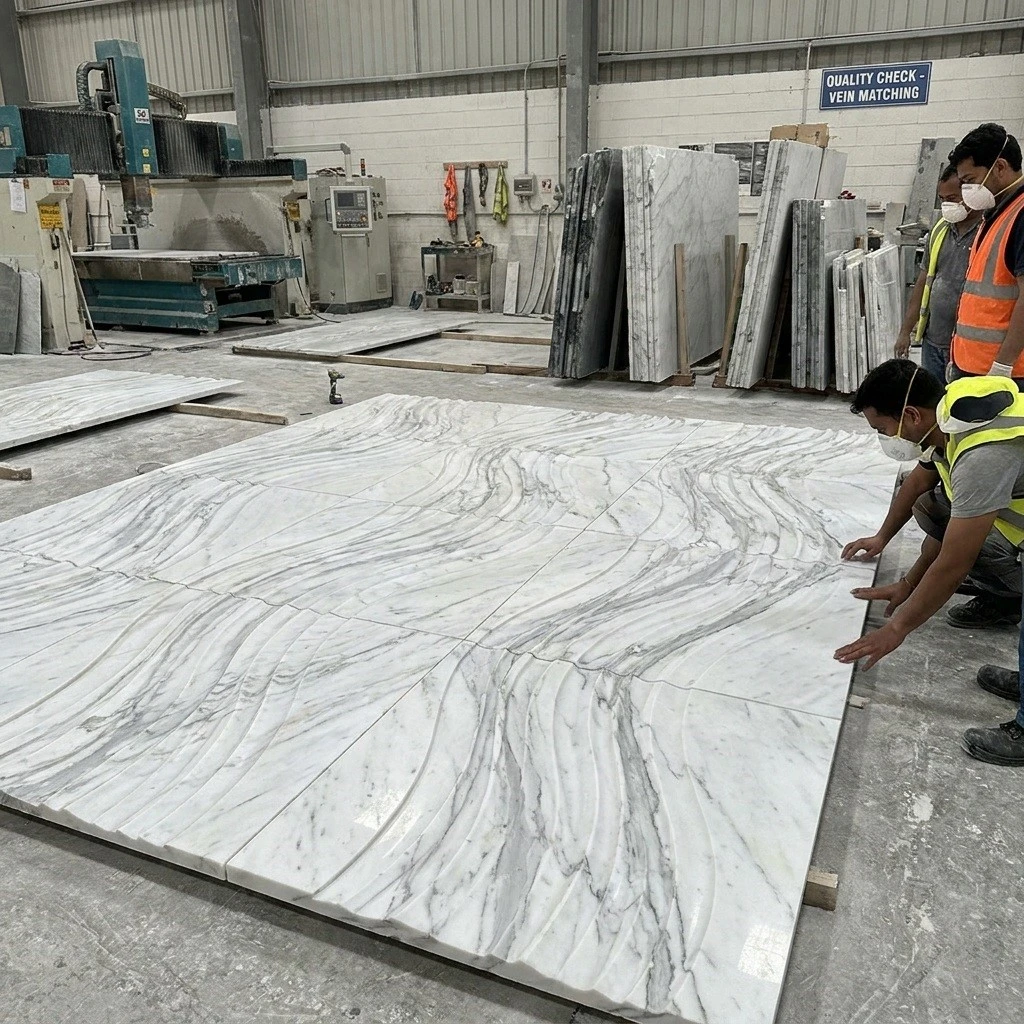

  • Dry-Lay Inspection Protocol: 100% of custom orders are fully assembled, numbered, and inspected on our factory floor prior to packing. We cross-check overall dimensions, vein continuity, and seam gaps to guarantee zero-defect on-site installation.



  • Packaging and Export Readiness: To prevent fractures during ocean transit, all stone elements are packed into ISPM-15 certified heavy-duty fumigated wooden crates, reinforced with structural steel banding and cushioned with high-density shock-absorbing foam.
productcate-1024-1024



productcate-1024-1024

Common Problem

Q: How do you ensure vein continuity and color consistency across large-scale continuous CNC wall panels?

A: We utilize a pre-production digital layout system. Before cutting, we photograph individual marble slabs and arrange them digitally using CAD software to align the natural veins. Once the optimal layout is approved, the stone block is cut in sequential slices (book-matched or continuous flow). Every finished panel is numbered according to its position in the layout for seamless on-site tracking.

Q: What is your standard lead time for a wholesale volume container order of CNC marble tiles?

A: Our standard lead time for a full container load （20 GP, approx. 400m2-500m2） of standard 18 mm CNC patterns) is 25 to 30 days from deposit confirmation and shop drawing approval. The exact timeline depends on the complexity of the 3D relief and the specific marble varieties selected.

Q: What is your standard lead time for a wholesale volume container order of CNC marble tiles?

A: By default, all CNC patterns are thoroughly cleaned, dried, and treated with a premium penetrating oil-and-water-repellent sealer at our factory to prevent staining during transit and installation. For high-traffic commercial flooring or wet-room installations, we recommend applying a project-specific final sealing treatment after grout installation is fully cured.

Q: Do you provide protective sealers on the CNC patterns before shipping, and how are they maintained?

A: By default, all CNC patterns are thoroughly cleaned, dried, and treated with a premium penetrating oil-and-water-repellent sealer at our factory to prevent staining during transit and installation. For high-traffic commercial flooring or wet-room installations, we recommend applying a project-specific final sealing treatment after grout installation is fully cured.
